Chasing a Password Through a MIPS Binary: PIC From First Principles
This post is the conceptual core of everything behind my OSS India 2026 talk on the Alphion ASEE-1447 router. Everything else I did — the cross-compiled gdbserver, the live debugging, the binary patch — only makes sense once you understand how a stripped MIPS PIC binary finds a hardcoded string like a password, with no symbol names and no obvious “load this address” instruction anywhere in sight.
If you’ve only ever read x86 disassembly, MIPS will look bizarre at first. There’s no instruction that directly encodes a 32-bit address. Loading a string means a chain of several instructions, an extra table in memory, and a register that has to be set up correctly before any of it works. This post builds that chain from nothing.

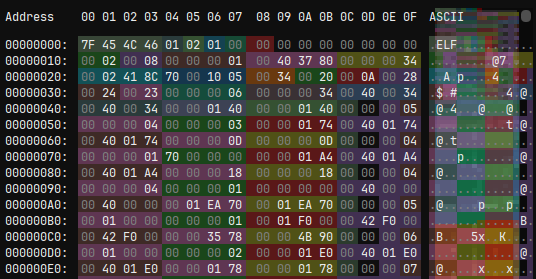

The running example throughout is the actual function I found in cli — the router’s authentication binary — that checks a hardcoded password.
1. Why MIPS instructions can’t just hold an address
MIPS instructions are a fixed 32 bits wide, always. Compare that to x86, where instructions vary in length and can carry a full 32-bit or 64-bit immediate value inline.
A MIPS instruction needs room for an opcode, register numbers, and — for the instructions that take an immediate value — only 16 bits left over for that immediate. This is the I-type instruction format:
1
2
3
4
5
31 26 25 21 20 16 15 0
┌──────────┬─────────┬─────────┬──────────────────┐
│ opcode │ rs │ rt │ 16-bit immediate │
└──────────┴─────────┴─────────┴──────────────────┘
6 bits 5 bits 5 bits 16 bits
A 16-bit signed immediate can only represent values from -32768 to +32767. A virtual address like 0x4188d4 (the address of one of the router’s hardcoded passwords) is nowhere close to fitting in that.
So how does code ever get a 32-bit address into a register? Two instructions, each contributing half:
1
2
lui $reg, upper16 ; load upper 16 bits, shifted left 16, lower 16 zeroed
addiu $reg, $reg, lower16 ; add the lower 16 bits
lui (Load Upper Immediate) puts a 16-bit value into the top half of a register and zeroes the bottom half. addiu (Add Immediate Unsigned, though the immediate itself is sign-extended) adds a signed 16-bit value to whatever’s already there. Together they can construct any 32-bit value, two pieces at a time.
This pattern is everywhere in non-PIC MIPS code, where the linker can bake an absolute address straight into a lui/addiu pair at link time. But cli isn’t using that pattern for its strings — and the reason why is the whole point of this post.
2. Why a MIPS executable needs PIC at all
PIC stands for Position-Independent Code — code that runs correctly no matter what address it’s loaded at. The classic justification is shared libraries: a .so file gets mapped into many different processes, often at a different address in each one, so it can’t have absolute addresses baked into its instructions.
cli is not a shared library. It’s a standalone executable, with its own dedicated virtual address space — the usual justification for PIC doesn’t apply. So why does it have all the PIC machinery (GOT, $gp, PLT stubs) at all?
Two things converge here, specific to how this router’s firmware is built:
First — cli dynamically links against 14 shared libraries (librtk.so, libssl.so, libcrypto.so, and others). Those libraries get mapped at runtime, at addresses cli can’t know about at compile time. To call into them, cli needs the same GOT-based indirection a .so file would need — regardless of whether cli itself is PIC.
Second — Realtek’s IPC architecture uses dlsym() to look up functions inside cli by name at runtime, from other processes. For dlsym() to find a symbol inside an executable (not a .so), that executable has to be linked with --export-dynamic, which keeps the symbol table in .dynsym rather than discarding it. Once you’re linked that way, the whole PIC apparatus — GOT, PLT, the $gp discipline — comes along with it, even for code that didn’t strictly need position independence for its own sake.
This turns out to matter for the security analysis too: strip only removes .symtab, never .dynsym. Because --export-dynamic forced function names into .dynsym, stripping the binary didn’t make it anonymous — function names for anything called externally are still sitting right there in the binary, readable with readelf --dyn-syms. The internal auth-checking function isn’t exported this way (it’s never called via dlsym), so it has no name at all — but everything it calls into does have a name, which is exactly the thread that let me trace into it.
3. The Global Offset Table (GOT)
The GOT is a table of pointers, sitting in the binary’s data segment, filled in partly by the linker (for things resolvable at link time) and partly by the dynamic linker at process startup (for things resolved at runtime, like library function addresses).
Instead of an instruction saying “the string is at 0x4188d4,” PIC code says “read whichever address is sitting in GOT slot N, then adjust by a small constant” — and the small constant fits in that 16-bit immediate field.
For cli, the GOT lives at virtual address 0x432120, confirmed with:
1
mips-linux-gnu-readelf -S cli | grep -A1 "\.got"
That’s a table of 0x454 bytes — 277 four-byte slots, each holding a 32-bit address.
4. $gp: the register that anchors everything
$gp (register 28, the “global pointer”) is the register MIPS PIC code uses to find the GOT. Every GOT-relative load is of the form:
1
lw $reg, offset($gp)
where offset is a signed 16-bit immediate. That’s a strict requirement: any single load instruction can only reach addresses within ±32KB of wherever $gp currently points.
Why $gp sits in the middle of the GOT, not the start
If $gp pointed at the very start of the GOT, only positive offsets would make sense, and you’d only be able to address the first 32KB of the table. By placing $gp near the middle of the GOT, both positive and negative signed 16-bit offsets get used, doubling the effective reach — up to 64KB of GOT can be addressed from a single $gp value. For cli, the chosen midpoint is 0x43a110.
How $gp gets set — the PIC prologue
$gp is just a register — nothing sets it automatically. Every function in a MIPS PIC binary has to compute it fresh, in its own prologue, using a three-instruction pattern:
lui $gp, %hi(_gp_disp)
addiu $gp, $gp, %lo(_gp_disp)
addu $gp, $gp, $t9
The first two instructions reconstruct a 32-bit constant called _gp_disp — the distance from this specific function’s entry address to the GOT midpoint — using the same lui/addiu split described in Section 1. The third instruction adds $t9, which by MIPS PIC calling convention must already hold this function’s own entry address at the moment the function starts executing.
Why does this work for every function in the binary, no matter where it’s located? Because the linker computes a different _gp_disp constant for each function — the constant is always exactly GOT_midpoint − this_function's_address. Add the function’s own address back in, and the function’s address term cancels out, leaving the same $gp = GOT_midpoint regardless of which function you’re in. The displacement is function-relative; the result is binary-global.
This is also why $t9 matters so much in MIPS PIC: the calling convention requires every caller to load the callee’s address into $t9 before calling it (the jalr $t9 instruction does the jump while leaving that contract satisfied). If $t9 doesn’t hold the right value when a function’s prologue runs, the addu $gp, $gp, $t9 step computes garbage, and every GOT-relative load inside that function silently resolves to the wrong address.
Confirming this against the real binary
The auth-checking function in cli starts at 0x40af0c. Its prologue:
1
2
3
40af0c: 3c1c0003 lui gp, 0x3
40af10: 279cf204 addiu gp, gp, -3580
40af14: 0399e021 addu gp, gp, t9
Worked out by hand:
1
2
3
lui gp, 0x3 → gp = 0x00030000
addiu gp, gp, -3580 → gp = 0x0002f204
addu gp, gp, t9 → gp = 0x0002f204 + 0x40af0c = 0x43a110
0x2f204 is exactly 0x43a110 − 0x40af0c — the GOT midpoint minus this function’s own address — split into the lui/addiu halves a linker would produce. The computed result, 0x43a110, matches the GOT midpoint independently confirmed from the section layout in Section 3. Two completely different derivation paths landing on the same number is about as solid a confirmation as static analysis gets.
I also decoded the raw instruction encoding by hand to double check, since I didn’t want to take any disassembler’s word for it without being able to verify it myself. Take 0x3c1c0003:
1
2
3
4
5
6
0x3c1c0003 in binary:
001111 00000 11100 0000000000000011
└─op──┘└rs──┘└rt──┘└────imm───────┘
op = 0x0f → LUI
rt = 28 → $gp
imm = 0x0003
Matches lui $gp, 0x3 exactly.
This is also the three-instruction sequence you can watch execute live under gdbserver — each si step in the remote debugging session updates the register pane and makes the calculation concrete.
Why $gp gets saved and restored constantly
$gp is stable within a single function — once the prologue computes it, it stays correct for that whole function, because the function never moves. But it has to be saved before calling into another function and restored after, because the callee will overwrite $gp with its own prologue computation (a different function-relative displacement, recall, but resolving to the same absolute GOT midpoint — the value is the same, but the call itself clobbers the register in the process, and a function located in another shared object may compute a completely different $gp).
You can see this pattern repeating constantly in the disassembly:
1
2
3
4
5
sw gp, 16(sp) ; save gp on the stack before a call
...
jalr t9 ; call something
...
lw gp, 16(sp) ; restore gp after returning
5. Following an actual GOT load to a string
This is the part that ties everything together — actually finding where a specific hardcoded value lives, using only the GOT and $gp, with no symbol table to lean on.
The target: the string "masnb01012021#" — one of two hardcoded passwords found in .rodata. Its file offset (from strings -t x) converts to virtual address 0x4188d4 once you add the binary’s load base (0x400000).
The actual instructions that produce this address, from inside the auth function:
1
2
40af60: lw a1, -32740(gp) ; a1 = GOT slot value
40af6c: addiu a1, a1, -30508 ; a1 = that value + (-30508) = 0x4188d4
Step 1 — find the GOT slot
-32740 is the offset from $gp. Since $gp = 0x43a110:
1
slot_address = $gp + offset = 0x43a110 + (-32740) = 0x43212c
Step 2 — read what’s actually stored there
1
mips-linux-gnu-readelf -x .got cli
Slot 0x43212c holds the value 0x420000. This isn’t the string’s address — it’s a GOT anchor: a base value the linker chose specifically because the target string is within signed-16-bit reach of it.
Step 3 — confirm the final addiu closes the loop
1
0x420000 + (-30508) = 0x4188d4
Which is exactly the string’s virtual address. The two values — the GOT slot’s stored base, and the addiu immediate baked into the instruction — only mean anything when combined. Neither one alone tells you anything; searching the binary for the literal bytes 4188d4 will never find this, because that 32-bit value never appears intact anywhere in the instruction stream.
The general method, stripped of this specific example
This is the deterministic way to find where any GOT-anchored value is loaded in PIC MIPS code, without guessing:
- Get the target virtual address (from
strings -t x+ load base, or wherever else you know the data lives). - Dump every GOT slot (
readelf -x .got). - For each slot value
B, check whethertarget − Bfits in a signed 16-bit integer (-32768to32767). Slots where it does are candidate anchors. - For each candidate, compute the required
addiuimmediate and grep the disassembly for that exact immediate value following alw ... ($gp)that reads that slot’s offset. - Confirm by re-deriving the target address from the matched instructions.
I did this with a short script comparing every GOT slot’s value against the target address — small enough to write inline, but the logic above is exactly what it does. No disassembler magic, no assumptions — every number traced back to something readable directly off the binary.
6. Resolving a dynamic call: how strcmp gets found with no symbol name
The same auth function calls strcmp to compare the password. Since cli is stripped and strcmp lives in a different shared library, the call doesn’t go directly to a known address — it goes through a lazy-binding stub.
1
2
40af64: lw t9, -32280(gp) ; t9 = address of the stub
40af68: jalr t9 ; call it
The GOT slot at offset -32280 from $gp (i.e. 0x4322f8) doesn’t hold strcmp’s real address — at least not until it’s been resolved once. It holds the address of a small stub. Disassembling that stub directly:
1
2
3
4
416a90: lw t9, -32752(gp) ; t9 = dynamic linker's resolver
416a94: move t7, ra ; save return address
416a98: jalr t9 ; call the resolver
416a9c: li t8, 122 ; symbol index, sitting in the delay slot
The li t8, 122 is the actual point of interest. MIPS lazy-binding stubs put the dynamic symbol table index of the function being resolved directly into a register, in the delay slot of the jump to the resolver. Look that index up:
1
mips-linux-gnu-readelf --dyn-syms cli | awk '$1 == "122:"'
.dynsym[122] is strcmp@GLIBC_2.0. That’s how you can identify any dynamically resolved call site in a stripped MIPS binary — find the stub, read the li t8, N in its delay slot, and look up index N in .dynsym. No decompiler needed, and it works even though the call site itself carries no symbol name whatsoever.
A quick note on terminology here, since “PLT” gets thrown around loosely: MIPS doesn’t implement the PLT the same way x86 does. The mechanism above — .MIPS.stubs, a GOT slot per external function, and the symbol index embedded in the delay slot — is the MIPS-specific equivalent, and it’s worth being precise about that distinction if anyone familiar with x86 PLT structure pushes back on the terminology.
7. Branch delay slots — the other MIPS gotcha
Every MIPS branch and jump instruction (beq, bne, jr, jalr, j, jal, and their variants) is followed by exactly one instruction that always executes, even when the branch is taken — this is the delay slot, and it exists because of MIPS’s pipelined instruction fetch design.
This shows up constantly in cli’s disassembly. For example, in the success path after the password check:
1
2
40af70: bnez v0, 40af98 ; if strcmp result != 0, branch to fail path
40af74: lw gp, 16(sp) ; delay slot — executes regardless of branch outcome
That lw gp, 16(sp) runs whether or not the branch is taken — it’s not “the first instruction of the not-taken path,” it’s unconditional. Reading MIPS disassembly correctly means always checking the instruction right after a branch and asking “does this need to run either way?”
This also explains a quirk worth knowing: bnez reg, target and bne reg, $zero, target are the exact same instruction — bnez is a pseudo-mnemonic the disassembler chooses to display, encoded identically to bne against the hardwired $zero register. There’s no separate “branch if not zero” opcode; it’s just bne against a register that’s wired to always read 0.
8. The full picture: the password-check function
Putting every mechanism above together, here’s the complete authentication function at 0x40af0c, annotated with what each line is actually doing:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
40af0c: lui gp,0x3 ; PIC prologue: gp = 0x30000
40af10: addiu gp,gp,-3580 ; gp = 0x2f204
40af14: addu gp,gp,t9 ; gp = 0x2f204 + entry_addr = 0x43a110
40af18: addiu sp,sp,-32 ; allocate 32-byte stack frame
40af1c: sw ra,28(sp) ; save return address
; ... (branch on a global flag, omitted for brevity) ...
; ============== PASSWORD PROMPT ==============
40af4c: lw t9,-31764(gp) ; t9 = getpass (via GOT)
40af50: jalr t9 ; call getpass(...)
40af54: addiu a0,a0,-30528 ; (delay slot) a0 = "Enter Password: "
40af58: lw gp,16(sp) ; restore gp after the call
40af5c: move a0,v0 ; a0 = user input (getpass's return value)
40af60: lw a1,-32740(gp) ; a1 = GOT anchor (0x420000)
40af64: lw t9,-32280(gp) ; t9 = strcmp (via lazy-binding stub)
40af68: jalr t9 ; call strcmp(user_input, hardcoded_password)
40af6c: addiu a1,a1,-30508 ; (delay slot) a1 = "masnb01012021#"
40af70: bnez v0,0x40af98 ; if strcmp != 0 -> fail path
40af74: lw gp,16(sp) ; (delay slot) restore gp, always runs
; ============== PASSWORD CORRECT ==============
40af78: lw a0,-32740(gp) ; a0 = GOT anchor again
40af7c: lw t9,-32168(gp) ; t9 = va_cmd
40af80: lw ra,28(sp) ; restore return address
40af84: addiu a0,a0,-30536 ; a0 = "/bin/sh"
40af88: move a1,zero ; a1 = NULL
40af8c: li a2,1 ; a2 = 1
40af90: jr t9 ; tail call: va_cmd("/bin/sh", NULL, 1)
40af94: addiu sp,sp,32 ; (delay slot) deallocate stack — never returns here
; ============== PASSWORD WRONG ==============
40af98: lw ra,28(sp) ; restore return address
40af9c: jr ra ; return to caller
40afa0: addiu sp,sp,32 ; (delay slot) deallocate stack
Every single GOT slot, every addiu immediate, and the lui/addiu/addu prologue — all traced back to first principles rather than taken on a disassembler’s word for it.
This is also the function I later patched (flipping bnez to beqz at 0x40af70, a single bit) and the one I attached gdbserver to for the live remote-debugging demo — everything downstream of this post builds on the derivation above.
What I haven’t fully nailed down
A few things worth being upfront about, since “document everything” should include the edges of what’s solid:
- The exact mapping of GOT slot to symbol for slots resolved at link time (as opposed to the lazy-binding-stub mechanism in Section 6, which only applies to dynamically resolved external calls) hasn’t been walked through with the same rigor. Some GOT entries are filled by the static linker directly rather than via a stub — worth a pass if a question comes up about every slot’s origin, not just the ones behind stubs.
- MIPS o32 ABI stack frame conventions — why exactly 32 bytes are allocated when only 28 are actually used (the 16-byte “argument home area” mandated by the ABI even when arguments are passed in registers) was confirmed during the GDB live-debugging session but isn’t written up here in the same first-principles depth as the GOT/
$gpmaterial. - Relocation types — I’ve talked about “the linker bakes in a constant,” but the actual ELF relocation type names involved (
R_MIPS_HI16,R_MIPS_LO16,R_MIPS_GOT16,R_MIPS_CALL16, etc.) haven’t been explicitly identified against this binary’s.rel.dyn/.rela.dynsection. Naming the actual relocation type at each step would tighten the connection between “the linker did this” and the concrete ELF mechanism responsible. - Why this function has no symbol name at all is explained at the “internal, non-exported function” level in Section 2, but I haven’t separately confirmed there’s no other static reference to it (e.g. a function pointer table) that might still carry a name elsewhere in the binary worth checking before calling the naming story fully closed.
None of these gaps affect the correctness of anything demonstrated live — they’re places where the explanation could go one level deeper if pressed, not places where the current understanding is shaky.
